P4 Data Request

create

Method	URL
POST	api/esh/p4_data_request/create

Pre-requisite steps

1. The initiator sends a request to create a Global Task p4_data_request

2. If the validation of the input parameters results in an error the ‘Global Task’ is not created and the errors are returned.

3. A Global Task is created and the GlobalTask.ID is returned.

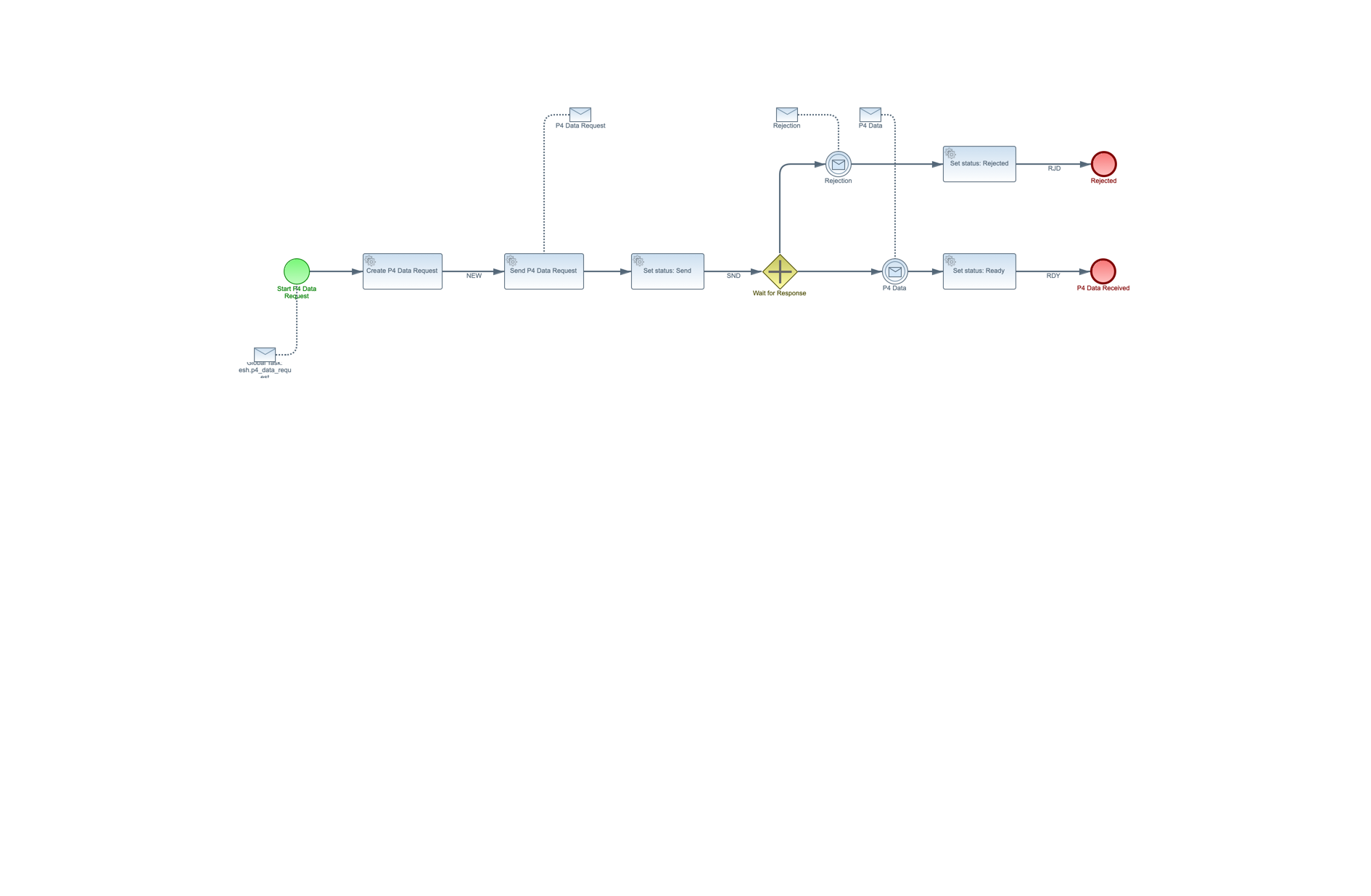

Global Task steps

1. The ValueA adapter sends out the request to EDSN via an XML request: P4CollectedDataBatchRequest.

EDSN rejection handling

1. EDSN validates the request (see EDSN validations). If there are inaccuracies, the message is rejected and a SOAP Fault is returned.

2. The ValueA adapter processes the rejection or confirmation from EDSN: P4CollectedDataBatchResponse or SOAPFault.

3. When a rejection is received the status of the GlobalTask step is set to error. An exception is made for error code 037 in which case the request is resend in the next iteration with a new message_id.

Grid Operator (CTS) response handling

1. The Grid Operator (CTS) validates the request (see Grid Operator validations). If there are inaccuracies, the message is rejected, otherwise the requested P4 data is returned.

2. The ValueA adapter collects the results send by the Grid Operator, if available, from EDSN: P4CollectedDataResultBatchRequest.

3. When a rejection is received the status of the GlobalTask is set to rejected.

4. When the requested P4 data is received the status of the GlobalTask is set to ready.

Input parameters

p4_data_request global_task input parameters
type	object
properties
ean_id	type	string
	pattern	^[0-9]{18}$
grid_operator_company_id	type	string
	pattern	^[0-9]{13}$
query_date	Date format as defined in RFC 3339, section 5.6.
	type	string
	format	date
query_reason	Day, Interval, Month Recovery
	enum	DAY, INT, RCY
use_local_data_for_validation	If true then the latest available MeteringPoint data will be used to perform additional validations
	type	boolean
	default	False

EDSN validations

validation	error message	error code
The value in the request meets the requirements set by the protocol	The value in the request does not meet the requirements set by the protocol	001
The EAN of the requesting party belongs to the used security certificate	Standard Authentication error. Requesting party’s EAN code does not match the certificate	003
The requesting party is authorized	The requesting party is not authorized	008
The addressed regional grid operator is known	EAN code grid operator unknown	036
The message can be delivered to the addressed regional grid operator	Message cannot be delivered to regional grid operator	037

Grid Operator validations

validation	error message	error code
Supplier is authenticated	The requesting party is not authenticated	000
The connection is known on the requested date	EAN-code connection unknown on the requested date.	006
The connection has a smart meter on the requested date	No smart meter on the connection on the requested date	007
The requesting party is authorized	The requesting party is not authorized	008
The smart meter has been deployed	Requested measurement data not available: meter in deployment phase	009
The date for meter readings is in the past	Date for requested data in the future, meter readings not yet available	010
The meter readings for the requested date are available	Date of requested data too old, meter readings no longer available	011
The requested measurement data is available	Requested measurement data not available, meter temporarily out of order	012
The submitted request can be executed by the meter	This particular request cannot be executed by the meter	013
The requested measurement data is available	Requested measurement data not available: malfunction known and under repair	014
The smart meter is administratively on	The smart meter is administratively off	038
The connection has a smart meter that can be read remotely from a technical point of view	There is a technically not remotely readable smart meter	039
The requesting party is mandated	The requesting party is not mandated, because the authorization has been terminated following a change of the contracting party on the connection	040
The requested measurement data is available	Requested measurement data not available: large-scale failure	041

Output parameters

client_key global_task return parameters
properties
global_task_id	GlobalTask.id
	type	string
	format	uuid
error	type	object
	properties
	messsageid	ValueA Broker message.id
		type	string
		format	uuid
	validations	type	array
		items	global_task_validation

global_task_validation

type	object
properties
message	type	string
ref	optional reference to parameter
	type	string / null
user_message	type	string / null

getStatus

Method	URL
GET	api/esh/p4_data_request/get_status

Get status input parameters

global_task get_status input parameters
type	object
properties
id	GlobalTask.id
	type	string
	format	uuid

Get status return parameters

global_task get_status return parameters
type	object
properties
status	type	string
status_date	type	string
	format	date
status_description	type	string / null
status_details	type	array
	items	status_detail
error	type	object
	properties
	messsageid	ValueA Broker message.id
		type	string
		format	uuid
	validations	type	array
		items	get_status_validation

status_detail

type	object
properties
description	type	string
remark	type	string / null

get_status_validation

type	object
properties
message	type	string
ref	optional reference to parameter
	type	string / null
user_message	type	string / null

getData

Method	URL
GET	api/esh/p4_data_request/get_data

Get data input parameters

p4_data_request get_data input parameters
type	object
properties
id	GlobalTask.id
	type	string
	format	uuid

Get data return parameters

p4_data_request get_data return parameters
type	object
properties
p4_data_response	type	object
	properties
	meters	type	array
		items	meter
	query_date	type	string
		format	date
	query_reason	Day, Interval, Month Recovery
		enum	DAY, INT, RCY
p4_data_rejection	type	object
	properties
	query_date	type	string
		format	date
	query_reason	Day, Interval, Month Recovery
		enum	DAY, INT, RCY
	reasons	type	array
		items	reason
error	type	object
	properties
	messsageid	ValueA Broker message.id
		type	string
		format	uuid
	validations	type	array
		items	get_data_validation

meter

type	object
properties
id	type	string
registers	type	array
	items	register

register

type	object
properties
id	type	string
measure_unit	enum	KVR, KWH, KWT, M3N, MTQ, WH, DM3, MJ, M3N3517, M3N3517HR, MQH
readings	type	array
	items	reading

reading

type	object
properties
reading	type	integer
reading_date_time	type	string
	format	date-time

reason

type	object
properties
code	type	string
text	type	string

get_data_validation

type	object
properties
message	type	string
ref	optional reference to parameter
	type	string / null
user_message	type	string / null

sendMessages

Method	URL
POST	api/esh/p4_data_request/send_messages

This Task wil send all available P4DataRequest (P4CollectedData) messages to EDSN.

Send Input parameters

p4_data_request send_messages input parameters
type	object
properties
receiver	grid operator
	type	string
	pattern	^[0-9]{13}$

Send return parameters

p4_data_request send_messages return parameters
type	object
properties
message_type	type	string
message_ids	type	array
	items	EDSN message.id
		type	string
		format	uuid
error	type	object
	properties
	messsageid	ValueA Broker message.id
		type	string
		format	uuid
	validations	type	array
		items	send_validation

send_validation

type	object
properties
message	type	string
ref	optional reference to parameter
	type	string / null
user_message	type	string / null
