EDSN Messaging

Normal operation

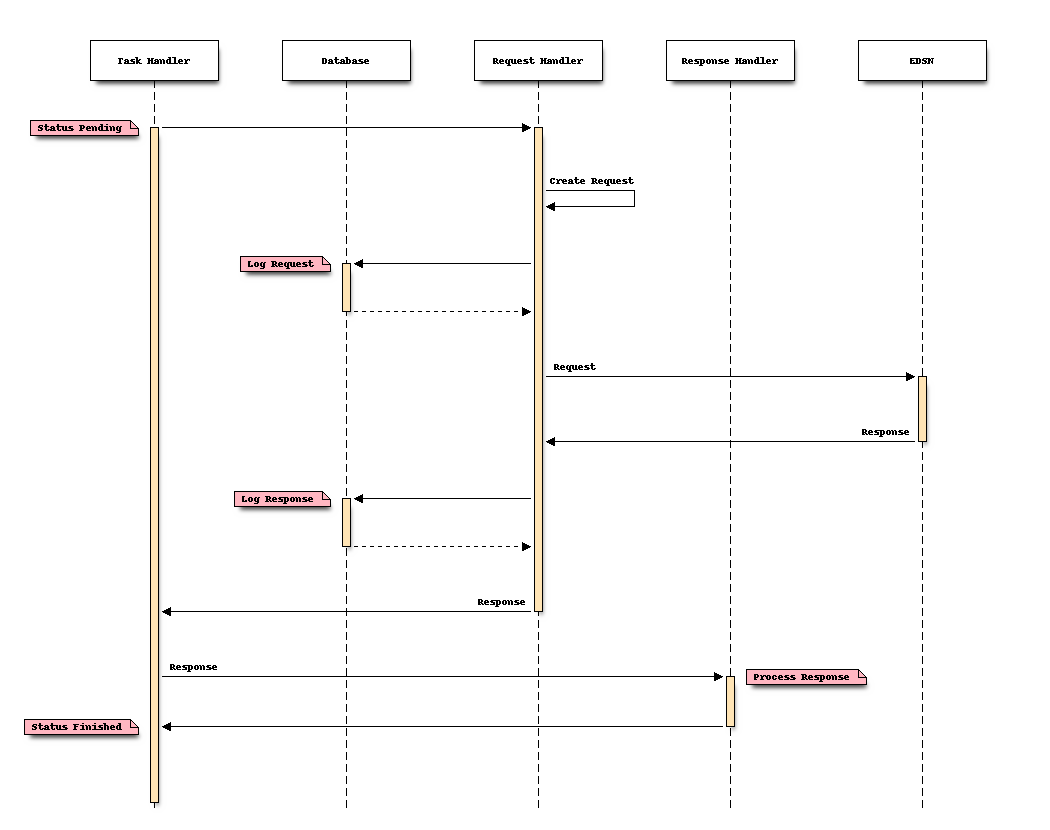

Message handling in case no connection failure, time-out or SOAP Fault occurred.

Connection failure

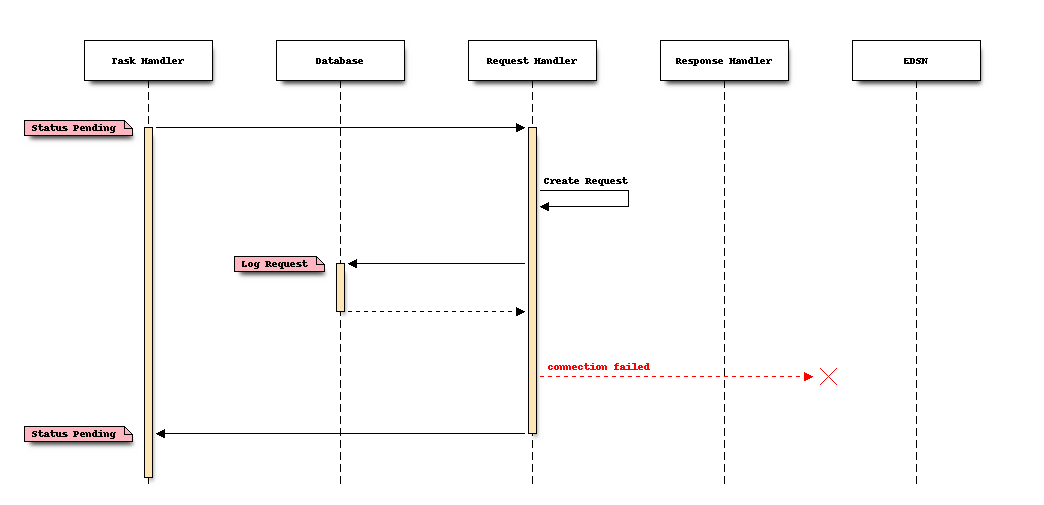

Message handling in case of a connection error.

In case of a connection error the messages can be send again in the next run as it is a normal operation so the state of the task stays Pending.

Time-out

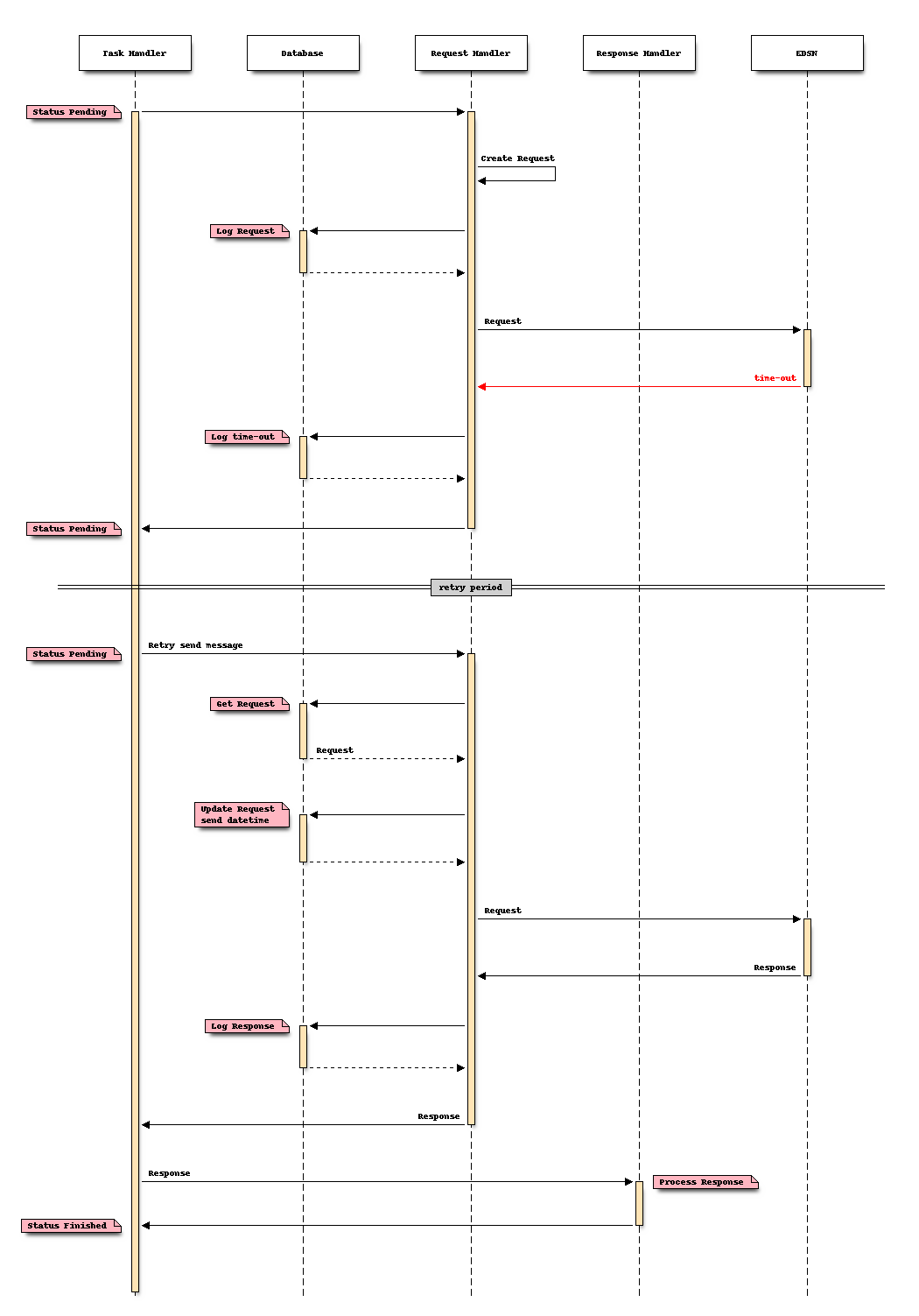

Message handling in case of a time-out. Time-out setting has a default setting for all services but can be set for a individual service as well.

Because the EDSN message handler is idempotent and the request could be processed by EDSN we need to send the request again with the same Message ID so EDSN will either send the available response or process the request and send the created response.

Note

TMR is not idempotent so handling for TMR messages is same as for connection failure.

SOAP Fault

Message handling in case a SOAP Fault is returned.

If a technical error occurs, a SOAP Fault will be returned. A SOAP Fault is one of the three message definitions with which a request/reply operation in a WSDL is described (in addition to input and output also a fault). The message definition of this generic SOAP Fault will contain an ErrorCode, an ErrorText and ErrorDetails. These three fields appear only once in the SOAP Fault.

The following technical errors are used:

Code	Text	ErrorDetails	Remark	Handling
1	Database Error	<None>	A transaction could not be committed due to a database problem occurring	Request is resubmitted with a new MessageID, handling same as connection failure
2	XML Schema validation error	<details of XML Schema validation error>	The presented XML message does not validate against the associated XML Schema	Task will be set in Error state. System administration must take appropriate action
3	System error	<None>	The EDSN system is unable to process the message	Request is resubmitted with a new MessageID, handling same as connection failure
4	Security error	<None>	The Request will not be processed for security reasons	Task will be set in Error state. System administration must take appropriate action
5	Time-out	<None>	The Request will not be processed due to a timeout	Request is resubmitted with a new MessageID, handling same as connection failure
6	End of session	<None>	The Response to the Request could not be returned due to end of session of the EDSN service dispatcher	Request is resubmitted with the same MessageID, handling same as time-out

CorrelationID

The CorrelationID used in the EDSN Business Document Header is used to correlate different messages in a process. When received this CorrelationID must be used in the related process messages.

This is handled by the Request Handler and the corresponding Response Handler.
